Implementation Design

This is a unordered list of implementation design decisions. Each topic tries to follow this structure:

Coverage Analysis Mechanism

Coverage information has to be collected at runtime. For this purpose JaCoCo creates instrumented versions of the original class definitions. The instrumentation process happens on-the-fly during class loading using so called Java agents.

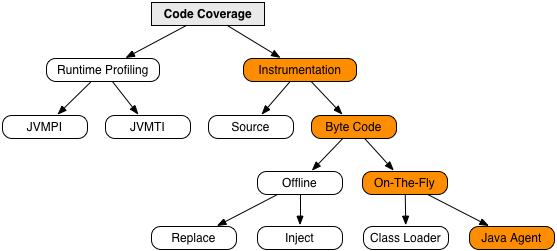

There are several different approaches to collect coverage information. For each approach different implementation techniques are known. The following diagram gives an overview with the techniques used by JaCoCo highlighted:

Coverage Implementation Techniques

Byte code instrumentation is very fast, can be implemented in pure Java and works with every Java VM. On-the-fly instrumentation with the Java agent hook can be added to the JVM without any modification of the target application.

The Java agent hook requires at least 1.5 JVMs. Class files compiled with debug information (line numbers) allow for source code highlighting. Unluckily some Java language constructs get compiled to byte code that produces unexpected highlighting results, especially in case of implicitly generated code like default constructors or control structures for finally statements.

Coverage Agent Isolation

The Java agent is loaded by the application class loader. Therefore the classes of the agent live in the same name space like the application classes which can result in clashes especially with the third party library ASM. The JoCoCo build therefore moves all agent classes into a unique package.

The JaCoCo build renames all classes contained in the jacocoagent.jar into classes with a org.jacoco.agent.rt_<randomid> prefix, including the required ASM library classes. The identifier is created from a random number. As the agent does not provide any API, no one should be affected by this renaming. This trick also allows that JaCoCo tests can be verified with JaCoCo.

Minimal Java Version

JaCoCo requires Java 1.5.

The Java agent mechanism used for on-the-fly instrumentation became available with Java 1.5 VMs. Coding and testing with Java 1.5 language level is more efficient, less error-prone – and more fun than with older versions. JaCoCo will still allow to run against Java code compiled for these.

Byte Code Manipulation

Instrumentation requires mechanisms to modify and generate Java byte code. JaCoCo uses the ASM library for this purpose internally.

Implementing the Java byte code specification would be an extensive and error-prone task. Therefore an existing library should be used. The ASM library is lightweight, easy to use and very efficient in terms of memory and CPU usage. It is actively maintained and includes a huge regression test suite. Its simplified BSD license is approved by the Eclipse Foundation for usage with EPL products.

Java Class Identity

Each class loaded at runtime needs a unique identity to associate coverage data with. JaCoCo creates such identities by a CRC64 hash code of the raw class definition.

In multi-classloader environments the plain name of a class does not unambiguously identify a class. For example OSGi allows to use different versions of the same class to be loaded within the same VM. In complex deployment scenarios the actual version of the test target might be different from current development version. A code coverage report should guarantee that the presented figures are extracted from a valid test target. A hash code of the class definitions allows to differentiate between classes and versions of classes. The CRC64 hash computation is simple and fast resulting in a small 64 bit identifier.

The same class definition might be loaded by class loaders which will result in different classes for the Java runtime system. For coverage analysis this distinction should be irrelevant. Class definitions might be altered by other instrumentation based technologies (e.g. AspectJ). In this case the hash code will change and identity gets lost. On the other hand code coverage analysis based on classes that have been somehow altered will produce unexpected results. The CRC64 code might produce so called collisions, i.e. creating the same hash code for two different classes. Although CRC64 is not cryptographically strong and collision examples can be easily computed, for regular class files the collision probability is very low.

Coverage Runtime Dependency

Instrumented code typically gets a dependency to a coverage runtime which is responsible for collecting and storing execution data. JaCoCo uses JRE types only in generated instrumentation code.

Making a runtime library available to all instrumented classes can be a painful or impossible task in frameworks that use their own class loading mechanisms. Since Java 1.6 java.lang.instrument.Instrumentation has an API to extends the bootsstrap loader. As our minimum target is Java 1.5 JaCoCo decouples the instrumented classes and the coverage runtime through official JRE API types only. The instrumented classes communicate through the Object.equals(Object) method with the runtime. A instrumented class can retrieve its probe array instance with the following code. Note that only JRE APIs are used:

Object access = ...                          // Retrieve instance

Object[] args = new Object[3];
args[0] = Long.valueOf(8060044182221863588); // class id
args[1] = "com/example/MyClass";             // class name
args[2] = Integer.valueOf(24);               // probe count


boolean[] probes = (boolean[]) args[0];

The most tricky part takes place in line 1 and is not shown in the snippet above. The object instance providing access to the coverage runtime through its equals() method has to be obtained. Different approaches have been implemented and tested so far:

Starting from version 0.8.3 JaCoCo Java agent implementation uses the InjectedClassRuntime to define new class in bootstrap class loader when running on JRE 9 and higher, otherwise uses ModifiedSystemClassRuntime to add field to an existing JRE class. Starting from version 0.8.0 field is added to the class java.lang.UnknownError, versions 0.5.0 - 0.7.9 were adding field to the class java.util.UUID, having bigger chance of conflict with other agents.

Memory Usage

Coverage analysis for huge projects with several thousand classes or hundred thousand lines of code should be possible. To allow this with reasonable memory usage the coverage analysis is based on streaming patterns and "depth first" traversals.

The complete data tree of a huge coverage report is too big to fit into a reasonable heap memory configuration. Therefore the coverage analysis and report generation is implemented as "depth first" traversals. Which means that at any point in time only the following data has to be held in working memory:

Java Element Identifiers

The Java language and the Java VM use different String representation formats for Java elements. For example while a type reference in Java reads like java.lang.Object, the VM references the same type as Ljava/lang/Object;. The JaCoCo API is based on VM identifiers only.

Using VM identifiers directly does not cause any transformation overhead at runtime. There are several programming languages based on the Java VM that might use different notations. Specific transformations should therefore only happen at the user interface level, for example during report generation.

Modularization of the JaCoCo implementation

JaCoCo is implemented in several modules providing different functionality. These modules are provided as OSGi bundles with proper manifest files. But there are no dependencies on OSGi itself.

Using OSGi bundles allows well defined dependencies at development time and at runtime in OSGi containers. As there are no dependencies on OSGi, the bundles can also be used like regular JAR files.
